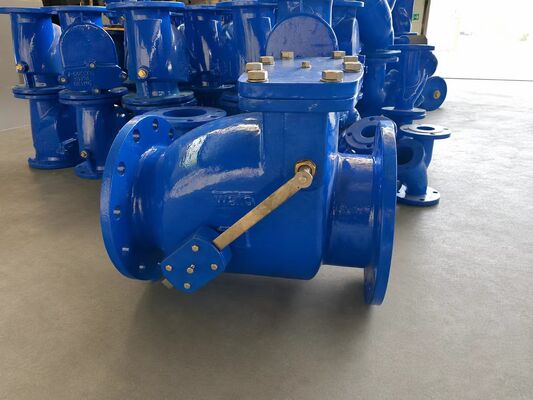

Robust Structure Check Valve With Counterweight Safety Operation

Product Overview

The Robust Structure Check Valve with Counterweight is a heavy-duty, safety-oriented non-return valve engineered for critical pump discharge and pipeline protection applications. The externally mounted adjustable counterweight provides precise control over disc closure speed, effectively preventing water hammer and reverse flow surges. Built with a reinforced body and hinge mechanism, this check valve delivers exceptional durability and fail-safe operation in water, wastewater, and industrial fluid systems.

Key Features & Advantages

• Counterweight-Assisted Safe Closure: The adjustable external counterweight controls the disc closing speed, ensuring a smooth, non-slam closure that eliminates water hammer shock waves — protecting pumps, pipe joints, and downstream equipment from surge damage.
• Robust Structural Design: The heavy-duty body, reinforced hinge pin, and oversized disc arm are engineered to withstand high-velocity flow, pressure transients, and frequent cycling without fatigue or deformation.
• Adjustable Closure Characteristics: The counterweight position on the lever arm can be fine-tuned to match specific system requirements — optimizing closure timing for different pipeline lengths, pressures, and flow velocities.
• Fail-Safe Reverse Flow Prevention: In the event of pump failure or power loss, the counterweight ensures rapid yet controlled disc closure, preventing catastrophic reverse flow that can spin pumps backwards and damage impellers.
• Low Pressure Drop: The full-bore, swing-type disc design minimizes flow restriction when fully open, maximizing pumping efficiency and reducing energy consumption compared to lift-type or spring-loaded check valves.
• Visual Position Indication: The external counterweight lever arm provides clear at-a-glance indication of disc position (open/closed), enabling quick operational status checks without instrumentation.
• Versatile Installation: Suitable for horizontal and vertical (upward flow) installations, with the counterweight orientation adjustable to suit site-specific piping layouts.

Technical Specifications

Applications

• Pump Station Discharge Lines (Primary Protection)
• Water Treatment Plant Transfer Pumping
• Wastewater Lift Station Force Mains
• Cooling Water Pump Discharge Headers
• Irrigation & Drainage Pumping Stations
• Fire Pump Discharge Piping
• Stormwater & Flood Control Pumping
• Industrial Process & Transfer Pump Systems

How the Counterweight System Works

1. Forward Flow: System pressure lifts the disc against the counterweight, allowing full forward flow with minimal resistance.

2. Flow Deceleration: As forward flow velocity decreases (pump stopping), the counterweight begins to exert controlled closing force on the disc.

3. Controlled Closure: The counterweight ensures the disc closes at a controlled rate, preventing the high-speed disc slam that causes destructive water hammer.

4. Reverse Flow Prevention: Once closed, line pressure firmly seats the disc against the body seat, providing positive backflow prevention.

Quality Assurance

Every Check Valve with Counterweight undergoes rigorous testing at our ISO-certified Qingdao facility, including shell hydrostatic test, seat leakage test (forward and reverse), counterweight mechanism functional test, full-stroke cycling test, and closure timing verification. Complete material certification and test reports available.

Packaging & Logistics

• Packaging: Heavy-duty wooden case with internal steel bracing, flange face protectors, counterweight arm bracing for transport, and VCI corrosion inhibitor treatment for all machined components.
• Delivery Time: Approximately two months from order confirmation.
• Supply Capacity: 300 containers per year, supporting large-scale pumping station and infrastructure projects.
