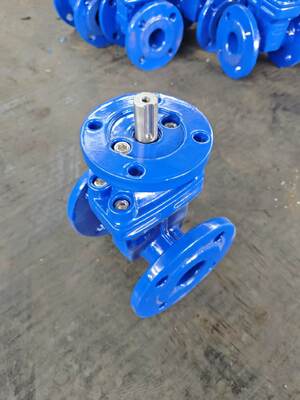

Robust Stem Gate Valve With Mounting Flange Safe Flanged Gate Valve

Product Overview

The Robust Stem Gate Valve with Mounting Flange is a heavy-duty flanged gate valve engineered for safe, reliable pipeline isolation in demanding industrial environments. Featuring an oversized, reinforced stem and an integrated actuator mounting flange (ISO 5211 compliant), this valve combines exceptional mechanical durability with seamless automation readiness. Its robust construction ensures dependable operation under high pressure, frequent cycling, and harsh service conditions across water, oil, gas, and process media applications.

Key Features & Advantages

• Reinforced Robust Stem: The oversized stem is precision-machined from high-strength stainless steel or alloy material, providing superior resistance to bending, galling, and torsional stress. This ensures reliable operation even under high differential pressure and frequent cycling.
• Integrated Mounting Flange: The built-in actuator mounting pad (ISO 5211 standard) enables direct mounting of electric, pneumatic, or hydraulic actuators without additional brackets or adapters. This simplifies automation upgrades and reduces installation complexity.
• Enhanced Operational Safety: The robust stem design with anti-blowout shoulder prevents stem ejection under pressure, while the rising stem provides clear visual position indication — enhancing operator safety and system integrity.
• Reliable Flanged Connection: The full-face flanged end connections, drilled to EN1092 or ANSI B16.5 standards, ensure secure, leak-free integration with existing pipeline systems and allow easy installation and removal for maintenance.
• Durable Sealing Performance: Precision-lapped gate disc and body seat rings provide bubble-tight shutoff with excellent resistance to wear, erosion, and temperature cycling in continuous service.
• Corrosion-Resistant Construction: Available with anti-corrosion coatings and corrosion-resistant trim materials, suitable for aggressive media, buried service, and marine environments.
• Automation-Ready Platform: The standardized mounting flange and stem drive dimensions allow quick conversion from manual to automated operation — protecting your investment and future-proofing your pipeline system.

Technical Specifications

Applications

• Municipal Water Supply & Distribution Networks
• Wastewater Treatment & Sewage Collection Systems
• Industrial Cooling Water & Process Piping
• Oil & Gas Pipeline Isolation
• Power Plant Auxiliary & Cooling Systems
• Fire Protection Water Mains
• HVAC & Building Services
• Irrigation & Agricultural Water Management

Automation Compatibility

The built-in ISO 5211 mounting flange supports direct integration with:

• Electric multi-turn actuators for remote & automated operation
• Pneumatic actuators for rapid open/close cycling
• Hydraulic actuators for high-torque applications
• Manual gearboxes for large-diameter valves requiring mechanical advantage
• Limit switch boxes and positioners for SCADA/PLC integration

Quality Assurance

Every Robust Stem Gate Valve undergoes rigorous factory testing at our ISO-certified Qingdao facility. Testing includes shell hydrostatic test, seat leakage test (zero-leakage verification), stem torque test, and full-stroke operational cycling. Mounting flange dimensional inspection is performed to ISO 5211 tolerances. Full material certification and traceability documentation available.

Packaging & Logistics

• Packaging: Export-grade wooden case with internal bracing, flange face protectors, stem protection sleeve, and VCI corrosion inhibitor treatment for all machined and threaded surfaces.
• Delivery Time: Approximately two months from order confirmation.
• Supply Capacity: 300 containers per year, with flexible production scheduling for OEM and project-based orders.
