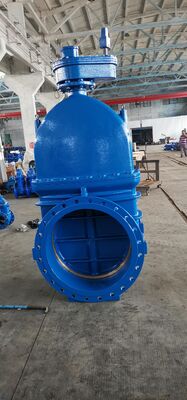

Smooth Operation Gate Valve With Gear Box Accurate Durable Wear Resistance

Product Overview

The Smooth Operation Gate Valve with Gear Box is a precision-engineered industrial valve designed for reliable flow isolation in large-diameter pipeline systems. The integrated gearbox mechanism provides significant mechanical advantage, enabling smooth, effortless operation even under high-pressure differentials. Built with wear-resistant sealing surfaces and durable construction, this gate valve ensures long-term, leak-free performance across water, oil, and general industrial media applications.

Key Features & Advantages

• Gearbox-Assisted Operation: The mounted gear box multiplies handwheel input torque, allowing a single operator to easily open and close large-bore gate valves that would otherwise require excessive manual force. Ideal for DN200 and above.
• Smooth & Accurate Flow Control: Precision-machined stem threads and gear teeth ensure backlash-free operation with accurate disc positioning, preventing partial opening/closing that can lead to seat damage.
• Wear-Resistant Sealing: The gate disc and seat rings are manufactured from high-grade materials with excellent wear resistance, maintaining sealing integrity over thousands of operational cycles in abrasive or high-cycle applications.
• Durable Body Construction: The robust valve body is cast from high-strength material, designed to withstand pipeline stresses, pressure surges, and harsh operating environments without deformation or fatigue.
• Bi-Directional Sealing: The gate valve design provides reliable shutoff in both flow directions, offering installation flexibility and reliable isolation regardless of pipeline orientation.
• Low Operating Torque: Despite the mechanical advantage, the gearbox is precision-engineered for minimal internal friction, translating to lower input torque requirements and reduced operator fatigue.
• Rising Stem Design with Position Indicator: The rising stem provides clear visual indication of valve position (open/closed), enhancing operational safety and preventing accidental misoperation.

Technical Specifications

Applications

• Municipal Water Supply & Distribution Mains
• Wastewater Treatment & Sewage Systems
• Irrigation & Agricultural Water Networks
• Industrial Cooling Water & Process Piping
• Oil & Gas Pipeline Isolation (Neutral Media)
• Power Plant Auxiliary Water Systems
• Fire Protection Water Mains
• HVAC & Building Services

Operational Benefits of Gearbox Gate Valves

• Ergonomic Operation: Reduces manual effort by 3:1 to 5:1 gear ratio, enabling single-person operation of large valves
• Precise Positioning: Multi-turn gear reduction allows fine control of disc travel, critical for throttling at startup and preventing water hammer
• Safety: Eliminates the risk of sudden valve slam or uncontrolled closure under pressure
• Extended Service Life: Smooth, controlled operation reduces impact stress on seats and packing, prolonging maintenance intervals
• Remote Operation Ready: The gearbox input shaft can be readily adapted for electric or pneumatic actuation for automated systems

Quality Assurance

Each Gate Valve with Gear Box undergoes comprehensive factory testing at our ISO-certified facility in Qingdao. Testing includes shell hydrostatic test, seat leakage test, gearbox operational torque verification, and full-stroke cycling test. Material certification and dimensional inspection reports are available upon request.

Packaging & Logistics

• Packaging: Sturdy wooden case with internal bracing, flange protectors, and gearbox protection wrapping. VCI (Volatile Corrosion Inhibitor) treatment for all machined surfaces.
• Delivery Time: Approximately two months from order confirmation.
• Supply Capacity: 300 containers per year, with flexible batch sizes for project and distributor requirements.
