High Flexibility Gate Valve With Bypass Pressure Monitoring Easy Installation

Product Overview

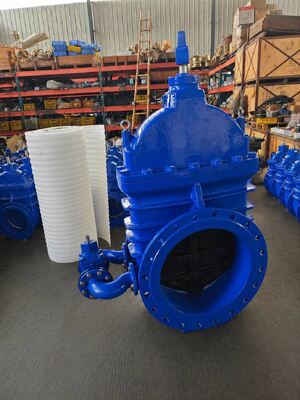

The High Flexibility Gate Valve with Bypass and Pressure Monitoring is an advanced flow isolation solution engineered for large-diameter, high-pressure pipeline systems. The integrated bypass circuit allows pressure equalization across the main gate before opening, dramatically reducing operating torque and preventing water hammer. Combined with built-in pressure monitoring ports, this valve delivers superior operational safety, ease of installation, and long-term reliability in critical water, oil, and industrial media applications.

Key Features & Advantages

• Integrated Bypass System: The built-in bypass circuit equalizes upstream and downstream pressure before the main gate opens, reducing the force required to lift the disc by up to 80%. This enables smooth single-operator operation of large-bore valves and eliminates pressure surge damage.
• Pressure Monitoring Capability: Dedicated pressure gauge ports on both upstream and downstream sides allow real-time pressure monitoring without additional pipeline modifications. Ideal for system diagnostics, leak detection, and preventive maintenance scheduling.
• High Operational Flexibility: The bypass + main valve configuration supports multiple operating modes — full isolation, bypass-only flow for low-volume startup, and full-bore flow — making this valve adaptable to diverse process requirements.
• Easy Installation: Pre-assembled bypass piping and integrated pressure ports eliminate the need for field fabrication of external bypass loops, reducing installation time, labor costs, and potential leak points.
• Water Hammer Prevention: Controlled bypass filling of the downstream pipeline prevents sudden pressure surges when the main valve opens, protecting pumps, pipe joints, and downstream equipment.
• Durable Sealing System: The main gate and bypass valve feature wear-resistant seat rings, maintaining leak-tight shutoff across thousands of cycles in demanding service conditions.
• Space-Saving Integrated Design: Unlike traditional external bypass arrangements, the integral bypass is compact and self-contained, minimizing the valve assembly footprint and simplifying pipe gallery layouts.

Technical Specifications

Applications

• Municipal Water Transmission Mains (Large Diameter)
• Water Treatment Plant Isolation & Startup Lines
• Pump Station Discharge & Suction Headers
• Hydroelectric Plant Penstock & Turbine Isolation
• Industrial Process Piping with Pressure Differential
• Long-Distance Oil & Water Pipeline Networks
• Power Plant Cooling Water & Auxiliary Systems
• District Heating Primary Circuit Isolation

Operational Sequence & Benefits

1. Filling Phase: The bypass valve is opened first, allowing a controlled flow that gradually fills and pressurizes the downstream pipeline.

2. Pressure Equalization: Once upstream and downstream pressures equalize (verified via monitoring ports), the main gate experiences near-zero differential pressure.

3. Main Valve Opening: The main gate opens effortlessly, with minimal torque and zero risk of water hammer.

4. Full Flow: The bypass is closed, and the main valve provides full-bore, unobstructed flow.

Quality Assurance

Each Gate Valve with Bypass undergoes comprehensive factory testing at our ISO-certified Qingdao facility. The test regimen includes main valve shell test, main valve seat test, bypass valve seat test, pressure port leak check, and full-sequence operational cycling. All test data is documented and traceable by serial number.

Packaging & Logistics

• Packaging: Reinforced wooden case with internal supports, flange protection covers, bypass valve and gauge port protective wrapping, plus VCI corrosion inhibitor for all machined surfaces.
• Delivery Time: Approximately two months from order confirmation.
• Supply Capacity: 300 containers per year, supporting large-scale infrastructure and EPC project procurement.
