Quick Release T Strainer Basket Strainer PN16 High Capacity Filtration

Working Pressure:16kg/cm²
Shell Test Pressure:24kg/cm²
Media:Water,Neutral Oil
Working Temperature:0-52°C
100%Fusion Bonded Epoxy Coating for Inner and Outside Surface

Flange Drilled According to EN1092 PN10,PN16

Size:DN50--DN200

T Strainer vs Y Strainer — When Contaminant Load Drives Your Choice

Pipeline strainers exist for one reason: to capture solid debris before it enters downstream equipment — pumps, control valves, heat exchangers, flow meters, spray nozzles. But not all debris loads are equal. A Y strainer, with its inclined screen chamber, is ideal for light, occasional contamination — pipe scale after commissioning, a few leaves from an open cooling tower basin. When the debris load is heavier — sand from a borehole, weld slag from ongoing construction, rust particles shedding from aging upstream pipework — a Y strainer's limited screen area fills quickly, pressure drop rises, and the strainer requires increasingly frequent cleaning. A T strainer (basket strainer) solves this problem by providing a much larger filtration chamber and basket surface area — typically 3 to 5 times the dirt-holding capacity of a comparably sized Y strainer — so it operates longer between cleanings and maintains lower pressure drop over time. The Model 5114 is a flanged T type basket strainer engineered for exactly this duty: applications where debris isn't an edge case, it's the normal operating condition.

Product Overview

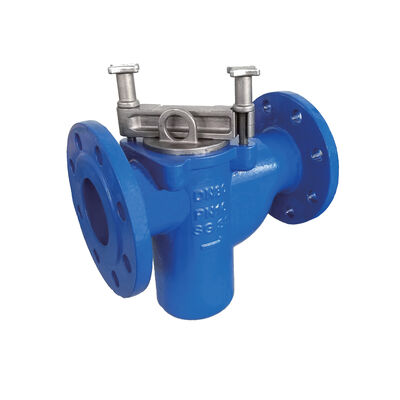

The Model 5114 is a flanged T type basket strainer with quick-release cover, PN16 rated, DN50–DN200. The T-shaped body places the strainer chamber perpendicular to the main flow path — fluid enters and exits in a straight line while the removable basket sits in the perpendicular chamber, collecting debris from the passing flow. A bolted top cover provides full access to the basket for removal, cleaning, and replacement without disconnecting the strainer body from the pipeline. The body is cast from EN-GJS-500-7 (GGG50) ductile iron with 100% fusion bonded epoxy coating (internal and external, minimum 250 um DFT). Flanges are drilled to EN1092 PN10/PN16 for universal European pipeline compatibility. Manufactured by Shandong Huaze Valve Co., Ltd. (ISO 9001, since 1998), every strainer is hydro-tested to 24 bar shell pressure before dispatch.

T Strainer vs Y Strainer — Engineering Comparison

Key Features

Quick-Release Cover — Basket Access in Minutes, Not Hours

The defining operational advantage of a T strainer is the speed of basket access. The bolted top cover is removed, the basket is lifted straight out of the chamber, cleaned (or swapped with a spare), lowered back in, and the cover resecured — all without touching the pipe flanges or breaking the pipeline connection. Compare this to a Y strainer in a horizontal installation: the drain plug is removed from the bottom, scale is scraped out by feel because the screen is deep inside the angled chamber, and the operator cannot visually confirm that the screen is fully clean. The 5114's T configuration makes basket inspection and cleaning a fast, visual, verifiable procedure. For operations with dozens of strainers across a facility, the cumulative labour saving is significant — what takes hours of maintenance across Y strainers takes minutes on T strainers with quick-release covers.

Large-Volume Basket — 3–5× the Dirt-Holding Capacity

The cylindrical basket element occupies the full perpendicular chamber of the T body — a volume significantly larger than the angled screen chamber of a comparable Y strainer. This large basket volume translates directly into longer intervals between cleanings, lower average pressure drop across the operating cycle, and proportionally less operator intervention. For applications with predictable, ongoing debris generation — sand in borehole water, mill scale in new pipework, rust particles in aging distribution systems — the large basket capacity means the strainer can be cleaned on a planned maintenance schedule rather than on an emergency basis when pressure drop triggers an alarm. The basket also serves as a diagnostic tool: the type, quantity, and size of debris collected in each cleaning cycle provide valuable information about what is happening upstream — a sudden increase in sand indicates a borehole screen failure; an increase in rust particles indicates accelerated pipe corrosion.

Straight-Through Flow Path — Lower Energy Loss

In a T strainer, the main flow enters and exits on a straight horizontal axis. The fluid does not change direction to pass through the screen — it continues straight while debris, carried by momentum or gravity, drops into the perpendicular basket chamber. In a Y strainer, the flow path is angled, forcing the fluid to turn as it passes the screen, which creates additional turbulence and pressure loss. The T configuration's straighter flow path results in lower pressure drop through a clean strainer and a more gradual pressure drop increase as the basket fills. For systems where pump energy cost is a line item in the operating budget, the lower pressure drop of a T strainer is a real economic advantage — less energy wasted overcoming unnecessary flow resistance, year after year.

Ductile Iron Body — Impact Resistance That Cast Iron Cannot Match

The 5114 body is cast from EN-GJS-500-7 (GGG50) ductile iron — a material with minimum 500 MPa tensile strength and 7% elongation. This is the same material grade specified for critical buried water valves worldwide. Cast iron (grey iron, GG25) has approximately 250 MPa tensile strength and essentially zero elongation — it shatters under impact. Ductile iron deforms, giving operators visual warning (a crack, a leak, a distorted flange) before catastrophic failure. For a strainer that may be installed in exposed locations — at ground level in a pump station, suspended from overhead pipework, or subject to occasional accidental impact from tools or vehicles — the ductile iron body provides a level of mechanical safety that cast iron cannot.

100% FBE Coating — Internal and External Protection

Every surface of the 5114 — internal flow path, internal basket chamber, external body, cover interior, flange faces (machined after coating) — receives fusion bonded epoxy coating at minimum 250 um dry film thickness. The coating is electrostatically applied and oven-cured for full cross-linking, producing an impermeable barrier between the ductile iron and the service fluid. This is particularly important inside the basket chamber: debris trapped in the basket is stationary for days or weeks, creating ideal conditions for localised corrosion if the chamber wall is not properly protected. The FBE coating ensures that the strainer body itself is not corroded by the very debris it has collected to protect downstream equipment.

Customisable Basket Mesh — Match the Filtration to the Application

The removable basket element can be supplied with different perforation sizes and mesh ratings to match the specific protection requirements of the downstream equipment. A coarse basket (3–6 mm perforations) protects pumps from large debris — stones, welding rods, plastic fragments — while maintaining minimal pressure drop. A medium basket (1–2 mm) protects control valves and heat exchangers from sand and scale. A fine mesh basket (0.5–1 mm, typically with a perforated outer support and inner mesh layer) protects spray nozzles, flow meters, and sensitive instrumentation. The basket is a replaceable consumable — when the mesh eventually wears or the perforations erode, a new basket restores the strainer to full performance without replacing the entire valve body. Having multiple baskets with different mesh ratings allows a single strainer model to serve different protection levels across a facility, simplifying spares inventory.

Materials of Construction

Technical Data

Applications — Where a T Strainer is the Right Specification

• Borehole / Well Water Systems: Groundwater extracted from boreholes carries suspended sand, silt, and mineral particles — a continuous, predictable debris load. A T strainer on the borehole pump discharge captures this sand before it reaches storage tanks, treatment equipment, and distribution pumps. The large basket capacity allows cleaning on a weekly or monthly schedule rather than daily, and the SS304 basket resists the abrasive wear of silica sand.
• Cooling Tower Protection: Open cooling towers ingest atmospheric debris — leaves, insects, dust, pollen — and concentrate dissolved solids through evaporation. The 5114 installed on the cooling water supply line to heat exchangers and chillers captures debris that would otherwise foul tube bundles, reducing heat transfer efficiency and increasing energy consumption.
• HVAC Chilled & Hot Water Loops: Large commercial HVAC systems have hundreds of metres of black steel pipework. Pipe scale, rust particles, and commissioning debris circulate in the water until captured. T strainers on the return lines to boilers and chillers protect expensive heat transfer surfaces. The quick-release cover allows building maintenance teams to clean baskets as part of routine preventive maintenance without calling in pipefitters to break flanges.
• Irrigation & Landscape Systems: Pumped irrigation from rivers, canals, or storage ponds carries organic debris (leaves, algae, weed fragments) plus inorganic sediment. Fine-mesh T strainers on pump discharges prevent nozzle clogging in sprinkler heads and drip emitters — critical for golf course, sports field, and agricultural irrigation where nozzle replacement across a field is far more expensive than periodic basket cleaning at one central strainer.
• Industrial Process Water: Process water in factories — parts washing, cooling, quenching, rinsing — picks up swarf, scale, grit, and process residues. A T strainer with a medium-fine basket protects downstream pumps, control valves, and spray nozzles. The SS304 basket resists corrosion from mildly aggressive process water chemistry.
• Fire Protection Pre-Action & Deluge Systems: Fire protection piping is stagnant for years between tests. Internal corrosion generates rust particles that can clog sprinkler heads during a fire event — the worst possible moment for a strainer to fail. The 5114's large basket and FBE-coated interior provide reliable debris capture with minimal maintenance over the system's multi-decade service life.
• Neutral Oil Filtration: Lubricating oil, hydraulic oil, and heat transfer oil (neutral grades) in transfer and circulation systems. The T strainer captures wear particles, carbon deposits, and contamination before they reach precision components — pumps, servo valves, heat exchangers. The EPDM gasket is selected for oil compatibility at the specified temperature range.

Quality Assurance

• 100% Shell Hydrostatic Test — 24 bar, 60 sec — every strainer body
• 100% Cover Seal Test — 24 bar, no leakage at cover joint — every strainer
• 100% Basket Inspection — Mesh integrity, perforation size, weld quality — every basket
• 100% FBE Coating DFT — min 250 um, all surfaces — every strainer
• 100% Spark Test — 3 kV holiday detection — every strainer
• 100% Dimensional Check — Flange drilling per EN1092, face-to-face, cover alignment
• EN 10204 3.1 Material Certificates available on request

Ordering Information

About Shandong Huaze Valve Co., Ltd.

Established 1998 in Qingdao, China. ISO 9001 certified manufacturer with 100–200 employees, 300 containers annual production capacity, and USD 5–6 million annual turnover. Huaze manufactures a comprehensive range of pipeline products for water, wastewater, fire protection, HVAC, irrigation, process water, and industrial applications: Gate Valves (DIN 3352 / EN 558, BS 5163, SANS 664), Swing Check Valves — flanged and wafer (DIN, BS 5153, Silent Metallic, Silent Resilient, Corrosion-Resistant Wafer), Strainers — Y Type and T Type Basket (DIN, BS), Air Valves, Globe Valves, Flap Valves, and Fire Hydrants. All products are individually factory-tested, coated, spark-tested, and shipped from Qingdao Port. Huaze serves distributors, water utilities, EPC contractors, pump OEMs, and building services contractors in 30+ countries worldwide.
